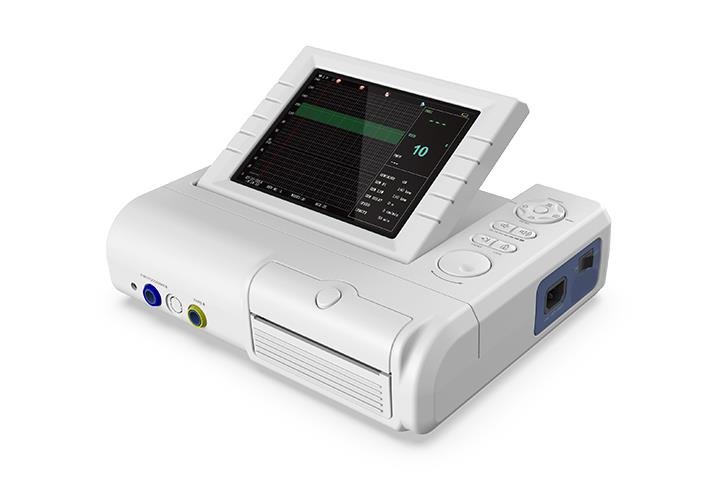

The FM series of Fetal Montitoring are the next generation of medical devices. The FM8 model is the latest in a series of accuity fetal monitoring products. With a large crisp 8 inch color display with tilt function, you would be hard pressed to miss a beat.

Catalog Here

• Function
  1.Compact design, it can be placed horizontally or hung on the wall.
  2.Color LCD, 60° convertible screen
  3.Display monitoring curve and data clearly
  4.Area mark for normal FHR(120 BPM~160 BPM).
  5.Manual record for fetal movement.
  6.Alarm for abnormal FHR
  7.Real-time monitoring for continuous 24 hours.
  8.Storage, playback and print the monitoring curve for continuous 12 hours.
  9.Optional interface languages: Chinese and English.
  10.Optional twins monitoring.
  11.9-crystal and broad beam transducer.
  12.Extra long-life and high-resolution built-in thermal printer.
  13.Communicate with central monitoring system by the built-in RJ45.


  Specification
  Safety
  Type of protection against electric shock: Class Ⅰ
  Degree of protection against electric shock: Type B applied part
  Working Voltage: AC 100 V~240 V
  Frequency: 50 Hz/60 Hz
  P＜60 VA
  Fuse: T1.6AL250V
  Print
  Record paper: Z-fold paper
  Print width: 112 mm
  Valid print width: 104 mm
  Paper speed: 1 cm/min, 2 cm/min, 3 cm/min(optional)
  Network interface: RJ 45
  Ultrasound probe
  Nominal Frequency: 1.0 MHz
  Work Frequency: 1.0 MHz±10%
  Negative peak sound pressure : p_<1 MPa
  Output beam intensity : Iob<20 mW/cm2
  The peak time space peak intensity: Ispta<100 mW/cm2
  The average time space peak intensity: Isata<10 mW/cm2
  FHR
  Range: 50 BPM~240 BPM
  Resolution: 1 BPM
  Accuracy: ±2 BPM
  TOCO
  Range: 0~100%
  Resolution: 1%
  Nonlinear error: ≤±10%
  RZ way: manual
  Fetal Marking
  Manual button


  Accessories
  A three-in-one Transducers(Ultrasound TransducerⅠ, TOCO Transducer, Remote Marker)
  A User Manual
  Two abdomen belts
  An earth line
  Record paper(two sets)
  A power cord
  Two Fuses
